Antarctic research unlocks mysteries of the upper atmosphere

Shimmering blue clouds in orange light and darkness above Macquarie Island earlier this year.
A spectacular display of noctilucent clouds at Macquarie Island earlier this year. (Photo: Ashleigh Wilson)

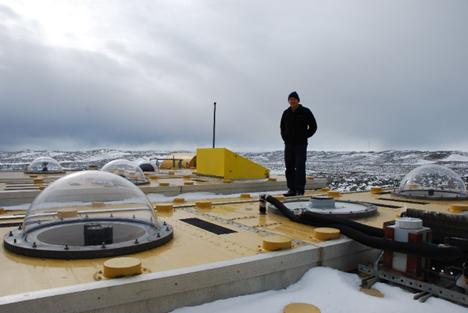

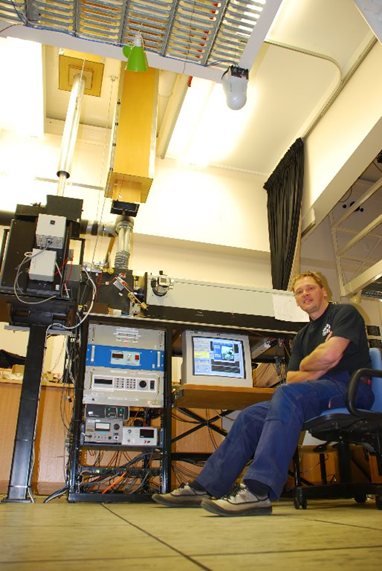

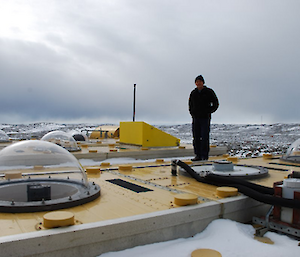

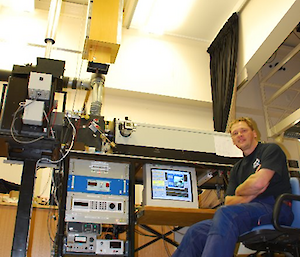

Dr John French sits in the optics lab, next to the measuring instrument, the Hydroxyl Spectrometer.Dr John French stands on the roof of the atmospheric and space physics lab at Davis research station.Shimmering blue noctilucent cloud high above Davis research station in Antarctica.

A long-term study in Antarctica of the upper atmosphere in the coldest place on Earth reveals several new discoveries about how the region is responding to increasing greenhouse gases:

  • The upper atmosphere is cooling 10 times faster than the average rate of global warming at the Earth’s surface.
  • The temperatures change is in response to both the solar activity cycle and carbon dioxide emissions from human activities.
  • Temperatures also vary in the upper atmosphere on a cycle of roughly four years.

The findings also promise to shed new light on the variability of the highest clouds on Earth, the spectacular noctilucent or ‘night shining’ clouds that are seen as a ‘miner’s canary’ of climate change.

Scanning the airglow layer

Scientists with the Australian Antarctic Division (AAD) have recorded more than 600,000 measurements over the last 24 years, 87 kilometres above Australia’s Davis research station.

“These comprise one of the longest temperature records available for this region of the atmosphere,” said AAD atmospheric physicist and study lead Dr John French.

Known as the hydroxyl airglow layer, it contains molecules formed by the reaction of hydrogen and ozone and emits a continuous ‘airglow’ in the night sky.

The measurements of the infrared spectrum from the airglow determine the layer’s temperature and are recorded every seven minutes throughout the Antarctic night.

Conversely to the warming that occurs in the lower atmosphere, the upper atmosphere cools in response to greenhouse gases increases.

The density of the upper atmosphere is so low, carbon dioxide actually radiates heat away into space, rather than trapping it.

“The climate of the Antarctic upper atmosphere is particularly sensitive to changes in atmospheric composition,” said Dr French.

“The hydroxyl airglow layer provides a natural means of sampling the upper atmosphere from the ground and enables us to monitor the rate of cooling induced by carbon dioxide increases.”

The study’s measurements date back to the early 1990s and have used the same, robust, precisely calibrated scanning spectrometer to scan the infrared spectrum produced by hydroxyl airglow.

Dr French said the Davis research station measurements showed that cooling rate was 1.2 degrees Celsius per decade over the last 24 years, approximately 10 times the rate of average global warming (approximately 1°C over the last century).

”The upper atmosphere has already cooled 3°C in the 25 years since measurements began in 1995,” he said.

Dr Frank Mulligan of Maynooth University in Ireland is a collaborator on the research.

“The Davis record clearly shows long-term temperature variation in the upper atmosphere caused by the sun’s activity cycle,” Dr Mulligan said. “But more importantly, overlying this is an unequivocal cooling trend that is consistent with the effect of increasing carbon dioxide emissions from human activities.”

Dr French said when scientists were observing changes of one degree a decade, the calibration needed to be “absolutely precise”.

“The duration of these continuous measurements and their location in Antarctica make them unique,” he said. “There are many challenges in keeping the instrument operating, supported and well calibrated over a quarter of a century now, but it is something the AAD has done well.”

The results match those from climate model simulations and satellite measurements and provide a more precise, complete picture of the long-term temperature trend.

A new temperature cycle is discovered

Another revelation from the study is that the polar atmosphere above Davis has been undergoing a roughly four-yearly temperature fluctuation cycle of three to four degrees Celsius.

AAD climate scientist Dr Andrew Klekociuk also contributed to the study and said the find was significant.

“This variation, which we call a Quasi-Quadrennial Oscillation or QQO, appears to be linked to interactions between the ocean and atmosphere in the Southern Hemisphere, and its effects are apparent in the upper atmosphere of both the Antarctic and Arctic,” he said.

“The QQO discovery further highlights how interconnected the global atmosphere is and the importance of long-term and precise measurements for monitoring and understanding the climate system,” Dr French said.

Dr Klekociuk said it was the first time the effects of the oscillation had been identified in the global upper atmosphere, and it had implications for scientists’ ability to model climate processes, detect long-term change, and understand its effects on other upper atmosphere phenomena such as noctilucent or ‘night shining’ clouds.

Ice clouds that glow in the dark

At a height of 83 km, noctilucent clouds (also known as NLCs) are the highest in the atmosphere, on the edge of space. Composed of ice crystals, they need extremely low temperatures (around minus 130°C) to form, and only become visible after the sun has set on the lower levels of the atmosphere. They appear to glow a pale blue, still illuminated by the sun, in a night sky.

Measurements from the long-term study provide new precise information on changes in the upper atmosphere to test climate models, and suggest that the NLCs in this region are likely to show particular variability in extent and brightness that has not previously been examined.

Enhanced cooling in the upper atmosphere increasingly provides suitable conditions for NLCs to form, so they are expected to become brighter and more extensive in the years ahead.

With the cooling conditions linked to carbon dioxide emissions that drive warming elsewhere, these clouds, although spectacular, are also ‘harbingers of change’ and have been referred to as “the miner’s canary of climate change.”

The research at Davis station is part of a global monitoring program designed for early detection of changing climate signals coordinated through the Network for Detection of Mesospheric Change (https://ndmc.dlr.de/) and has a future goal of measuring throughout the Sun’s next 11-year activity cycle.

The second of two papers on the research has just been published in the European journal, Atmospheric Chemistry and Physics.

Despite the COVID-19 pandemic significantly affecting the work of AAD scientists this coming season, the automated long-term monitoring high above Davis can continue as normal.
